Check every contact point before choosing packaging for a 6061 aluminum thin-wall sleeve used in communications equipment. A dent can start in soft jaws, a reusable tray, or a transfer tote and remain hidden until the sleeve reaches assembly. Begin with the sleeve’s bore and outside wall, then inspect the handling path from the machine to the sealed carton. The first sample should show which surfaces touched the part and whether those contacts left a mark.
The sleeve may protect a cable, space a connector, or locate a light assembly inside a communications enclosure. Its thin wall can carry the required geometry while still showing a pressure mark from a hard tray corner or an adjacent metal part. A packaging drawing that names only the carton size leaves the supplier guessing about contact protection. Identify the functional bore, the outside seating area, and any face that must remain free of dents before the team reviews transport materials.

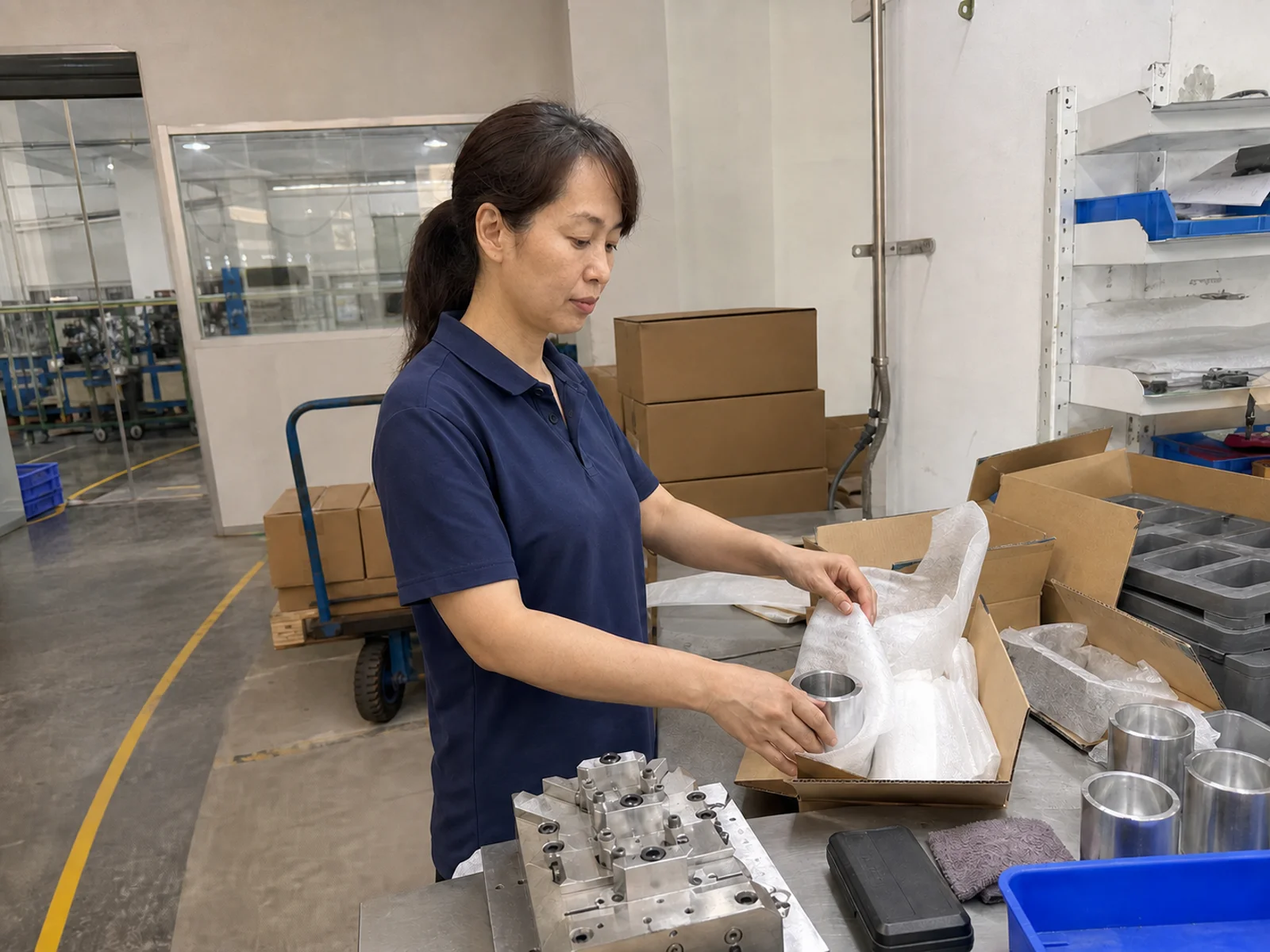

At the handling review, keep one as-machined sleeve separate from a sleeve that has passed through internal transport. The inspector checks the bore, outside wall, and end face under the agreed light, records each contact location, and compares the same feature before and after movement. She also checks the soft-jaw fixture and tray pockets for exposed edges, trapped chips, or compressed inserts. If a new mark appears after transfer, hold the parts and trace the path before selecting a different carton.
Soft jaws protect a sleeve only when the jaw shape matches the released support condition. A pocket that grips a broad outside area may still press against a thin wall if chips or a raised edge sit beneath the part. The operator should clean the support surface, place the sleeve at the specified datum, and record whether the bore stayed round after unclamping. A mark that appears before transport belongs to workholding review. A mark that appears after the tray leaves the cell belongs to handling review. Keep one reference sleeve at the bench so the operator can compare the contact area without pressing a new part into the fixture. Note whether the sleeve touched the jaw on its bore side, outside wall, or end face.
Reusable trays create a second contact condition. A sleeve can touch a divider, another sleeve, a clipped label holder, or the bottom of a pocket when the tray moves between operations. Keep checked and unchecked sleeves in separate locations and inspect the tray before and after the transfer. A contact mark on the same side of several parts points toward a tray feature. Random marks across different surfaces may require a review of loose parts, protective film, or how the operator loads the tray. Photograph the tray only when the image preserves the part identity and process stage. A clean tray after the run does not prove that a loose chip was absent when the transfer began.
Packaging decisions should follow the observed path. A soft separator can prevent metal-to-metal contact, but it may also shed material into a bore or allow parts to move when the carton tilts. A closed bag can protect the surface while hiding whether the sleeve touches the carton wall. The supplier should test the chosen divider, bag, or insert with the actual sleeve and note which surfaces remain supported. Do not approve a material from a bench sample that does not reproduce the movement between the machine, inspection bench, and shipping area. The trial should also show how the operator removes a sleeve without dragging it across a divider edge. That motion can create a line that never appears while the part remains still on the bench.
Compare the sleeve before and after internal transport with one inspection method. Use the same support, light, and contact points for the bore and outside wall. If the first sleeve passes but a later group shows dents, retain one marked sample from each stage and compare the tray load, contact surfaces, and operator sequence. The record should name the process stage rather than relying on a clean appearance. Physical separation keeps a handling mark from being mistaken for a turning defect. If the mark follows a tray pocket, correct the pocket before changing a machining setting. If the mark appears only after the carton is closed, review the divider compression and loading sequence.
Two references support different next steps: the [thin-wall sleeve finish-allowance check](/corporatenews/532.html) covers drawing and released-surface conditions, while the [precision pin burr-check method](/industrynews/537.html) shows why before-and-after inspection needs a named process state. Neither article replaces a transport trial for this 6061 sleeve. Use the drawing to define the functional surfaces, then use the handling record to confirm that the selected packaging protects them.
The method has a boundary. Surface checks before and after internal transport can show a dent, contact line, or change at the bore, but they cannot establish long-term vibration performance, drop resistance, or the communications assembly’s final fit without the approved packaging and test method. They also cannot prove that a sleeve is free of machining damage when the part never passed the as-machined inspection. Keep handling evidence tied to the stage it can support.
Before shipping release, inspect the soft-jaw support, tray pockets, divider, bag, and carton contact points with one 6061 aluminum thin-wall sleeve. Continue when the bore, outside wall, and functional face remain unchanged after the internal transfer trial. Stop and revise the handling path when a mark appears at a repeatable contact, when sleeves touch each other, or when the protective material sheds into the bore. That result decides whether the current packaging protects the part or needs another trial.
